Handheld Scanner
USB

Handheld QR 1D/2D desktop barcode scanner for school cafeterias
(Wired USB model with free complementary stand)

Alpha-202-USB wired school lunch barcode scanners can be hand-held or mounted on the free complementary stand for hands-free operation.

Handheld USB School Lunch Scanner

Make K12 School Lunch Lines Move Faster With Our
USB Handheld Barcode Scanner!

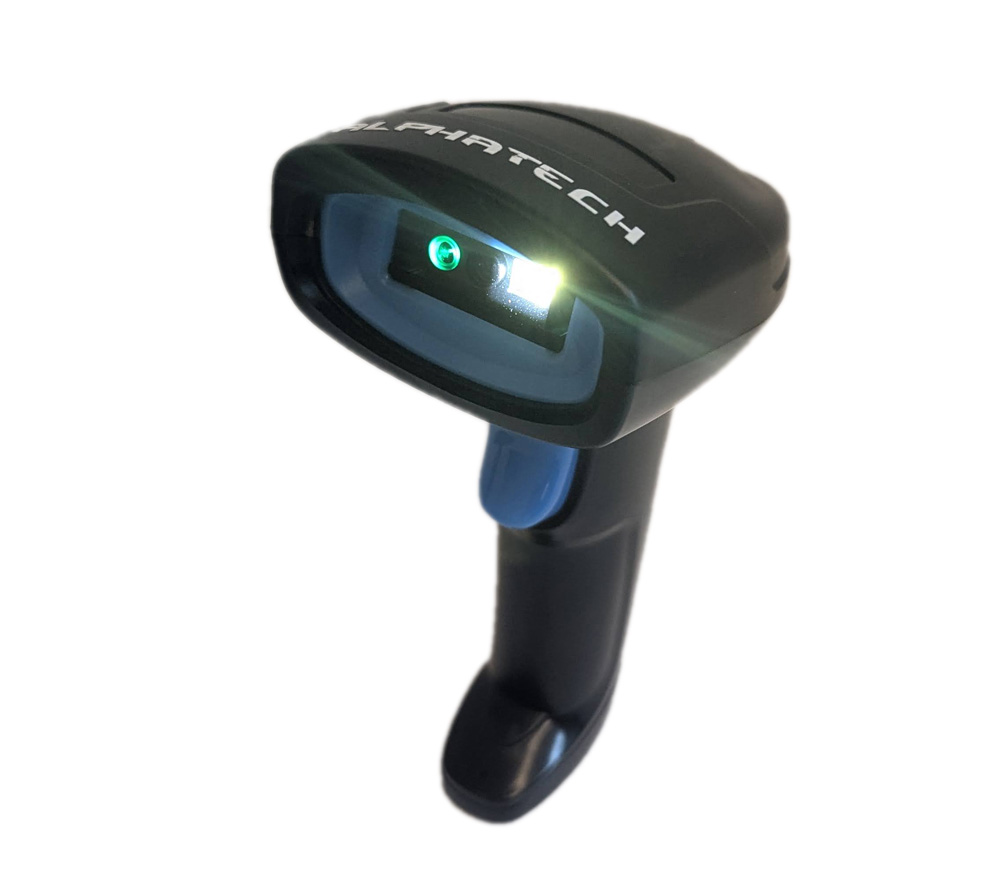

Handheld School Cafeteria Scanner
Handheld Scanner
Scanner with Stand
Scanner with flexible stand

USB Barcode Scanner Specifications

Model

  • Alpha-202-USB.

Features

  • Multi languages.
  • Support online full ASCII character editing.
  • Interface: USB, USB-VIRTUAL COM.

Regulatory

  • CE, FCC, RoHS.

Environment

  • Operating Temperature:-20℃ to 50℃.
  • Storage Temperature: -40°C to 70°C.
  • Humidity:5% – 95% non-condensing.
  • Operating Humidity: 5% to 90% Non-Condensing.
  • Drop test :1.5m.

Specifications

  • Working current:3.3Vx210mA (idle:0mA)
  • Light aimer:617nm LED.
  • illumination:6500K LED.
  • Sensor:640×480 CMOS.
  • Indication:Buzzer & LED.
  • Trigger :Button, Continuous, Auto-sense.
  • Resolution:1D≥4mil,2D≥10mil.
  • Scanning angle:rotation 360°,inclination± 55°,declination ± 55°.
  • FOV:Horizontal 34°, Vertical 28°.
  • Printing Contract : ≥ 20%.
  • Anti-interference:100000 Lux Max
  • Decode Ranges:(250Lux)
    13mil-EAN13(13bytes) 50-200mm
    5mil-Code39(10bytes) 40-90mm
    20mil-QR(16bytes) 25-240mm
    6.67mil-PDF417(7bytes)30-130mm
  • Decode Capability:
    1D:UPC, EAN, ISBN, ISSN, Code 128, Code 39, Code 32, Code 93, Interleaved 2 of 5, industrial 2 of 5, Matrix 2 of 5, IATA 2 of 5, MSI Plessey, Code 11,Codabar, GS1 Data Bar.
    2D:QR, Micro QR Data Matrix,PDF417,MicroPDF417,Aztec,Maxi Code
  • LED life:100000 hours – Button life :1000,000 times.

Accessories

Barcode Scanner Stand

Barcode Scanner Stand with Flexible Arm

Barcode scanner stand with flexible arm provides a flexible base for scanner and allows direct hands-free scanning.

BarCode Scanner Stand with Fixed Arm

Barcode Scanner Stand with Fixed Arm

Barcode scanner stand with fixed arm provides a steady base for scanner and allows direct hands-free scanning.

Our Pledge to Quality

School Lunch Pin Pad and Scanner 3 year warranty.

Warranty

All our school nutrition pin pads and scanners are covered by a 3-year warranty from the date of purchase.

Pin pad FCC approved

FCC Approved

Our cafeteria keypad components are FCC approved.

USA made pin pads

US Company

Our keypads are designed, assembled in the US, ship from our warehouse in Irvine, California.
