Orbital Scanner
Omni-Directional QR Desktop Barcode scanner for school cafeterias

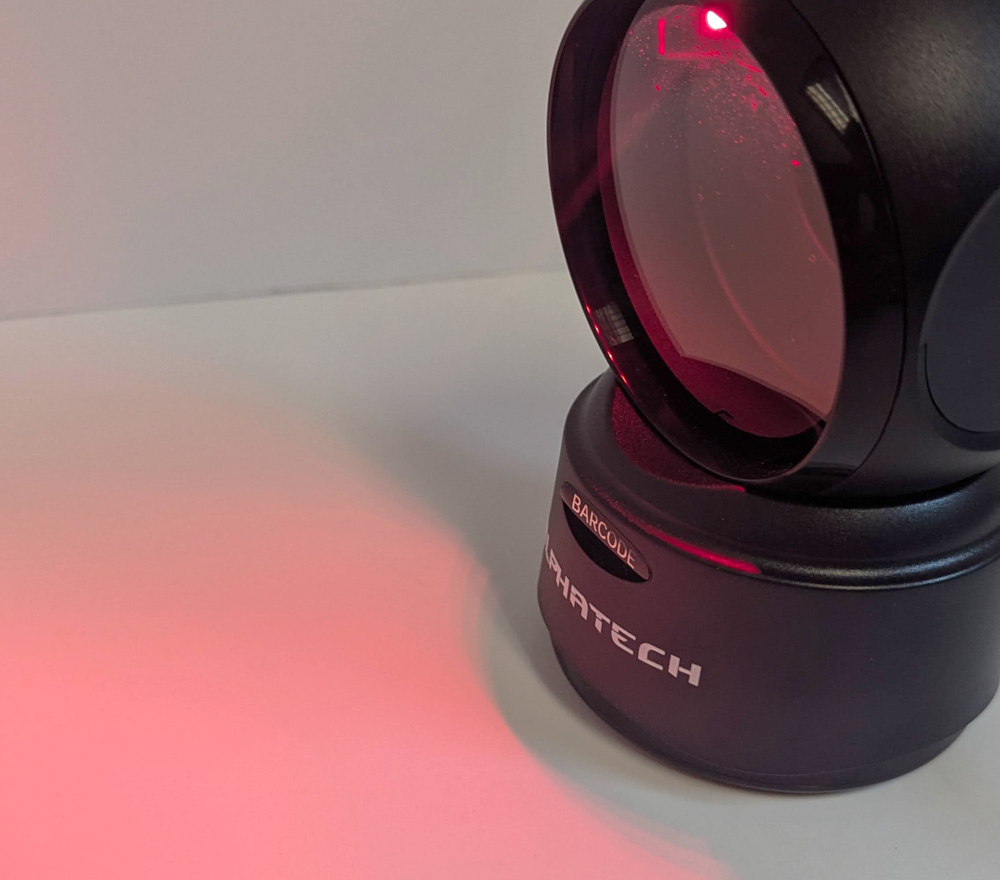

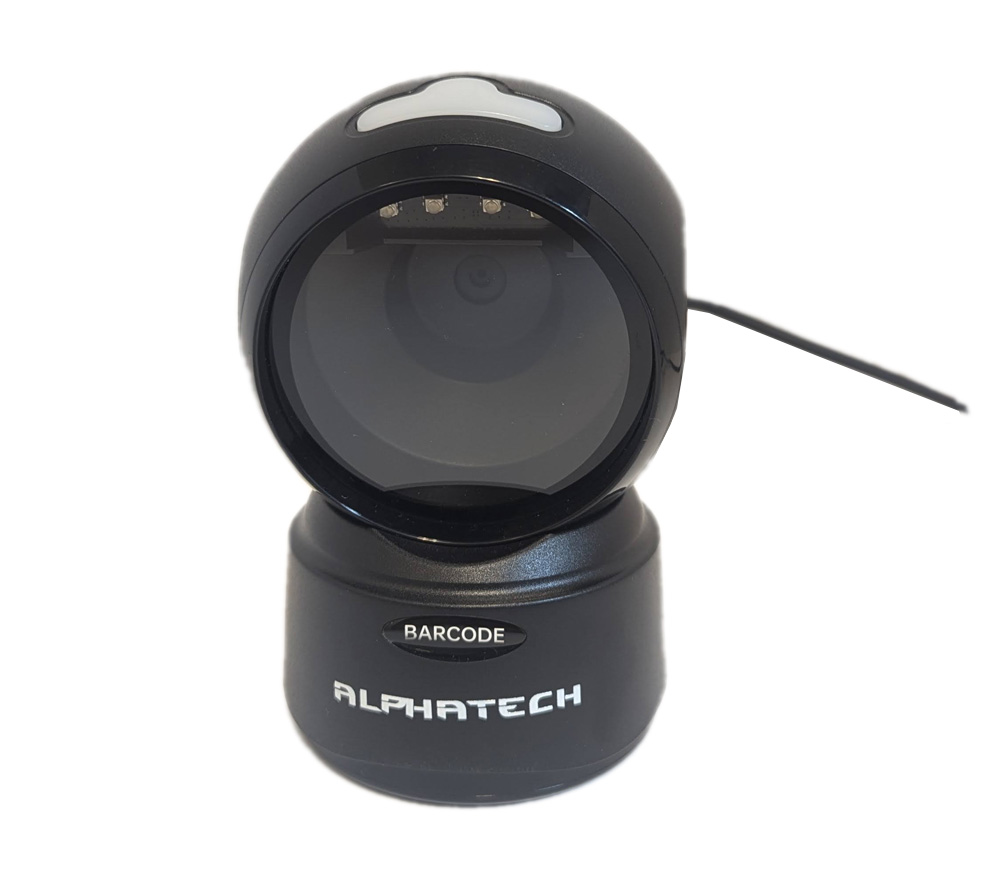

The Alpha-201 scanner is a hands-free QR / 2D K12 school lunch scanner with high accuracy and speed scanning.
Make School Lunch Lines Move Faster With
Alpha-201 Orbital Barcode Scanner!
What Are Orbital Omni-Directional Scanners?
Also known as omni-directional, orbital scanners are scanning devices that feature extra mirrors multiplying the laser, allowing to read 2D and QR barcodes from various directions.
Orbital Scanner Specifications
Model
- Alpha-201
Features
- High Resolution Scanning for advanced accuracy.
- Image-based CMOS.
- Fast scanning barcodes from a card or a cell phone.
- Swivel mounted scanner head for adjusting scanning angle.
- LED lights (safe for the eyes).
- Multi-prompt Beeper + LED indicator light for feedback.
- Programmable.
- Interface: USB/RS232/USB Virtual COM interface.
Physical Parameters
- Size: 85mm x 85mm x 150mm
- Weight: 320g
- Cable: USB 1.5 meters
Regulatory
- CE, FCC, RoHS
Specifications
- Light Source Type: 625nm LED light source.
- Scan Principle: Image-based CMOS.
- Trigger Mode: Induction Mode, Continuous Mode, Command Mode.
- Scanning Angle: Elevation angle 65 degree, Turning Angle 360 Degree, Offset 75 degree.
- Scan Accuracy: over 4.5 mil.
- Resolution: 1280 x 9860.
- Depth of Field: 2cm to 35cm.
- Voltage: DC5V.
- Working current：210mA.
- System Compatibility: Linux, Android, Windows, Mac.
Environment
- Operating Temperature：-20℃ to 50℃.
- Storage Temperature: -40°C to 70°C.
- Humidity：5% – 95% non-condensing.
- Operating Humidity: 5% to 90% Non-Condensing.
- Shock Resistance: 1.5 meters drop test.
Our Pledge to Quality
Warranty
All our school nutrition pin pads and scanners are covered by a 3-year warranty from the date of purchase.
FCC Approved
Our cafeteria keypad components are FCC approved.
US Company
Our keypads are designed, assembled in the US, ship from our warehouse in Irvine, California.
